Getting Started with Provision Manager

This walkthrough takes you from nothing to a provisioned Windows device: set up a template, start a provisioning point, boot the target device, and follow the installation to completion.

Before you start

• You need at least one managed, online Windows endpoint to act as the PXE server, on the same subnet as the devices you want to provision. No PXE-capable endpoint on that subnet? Use a USB key instead.
• The target device must support UEFI boot and have a wired network connection.

1. Set up a provisioning template

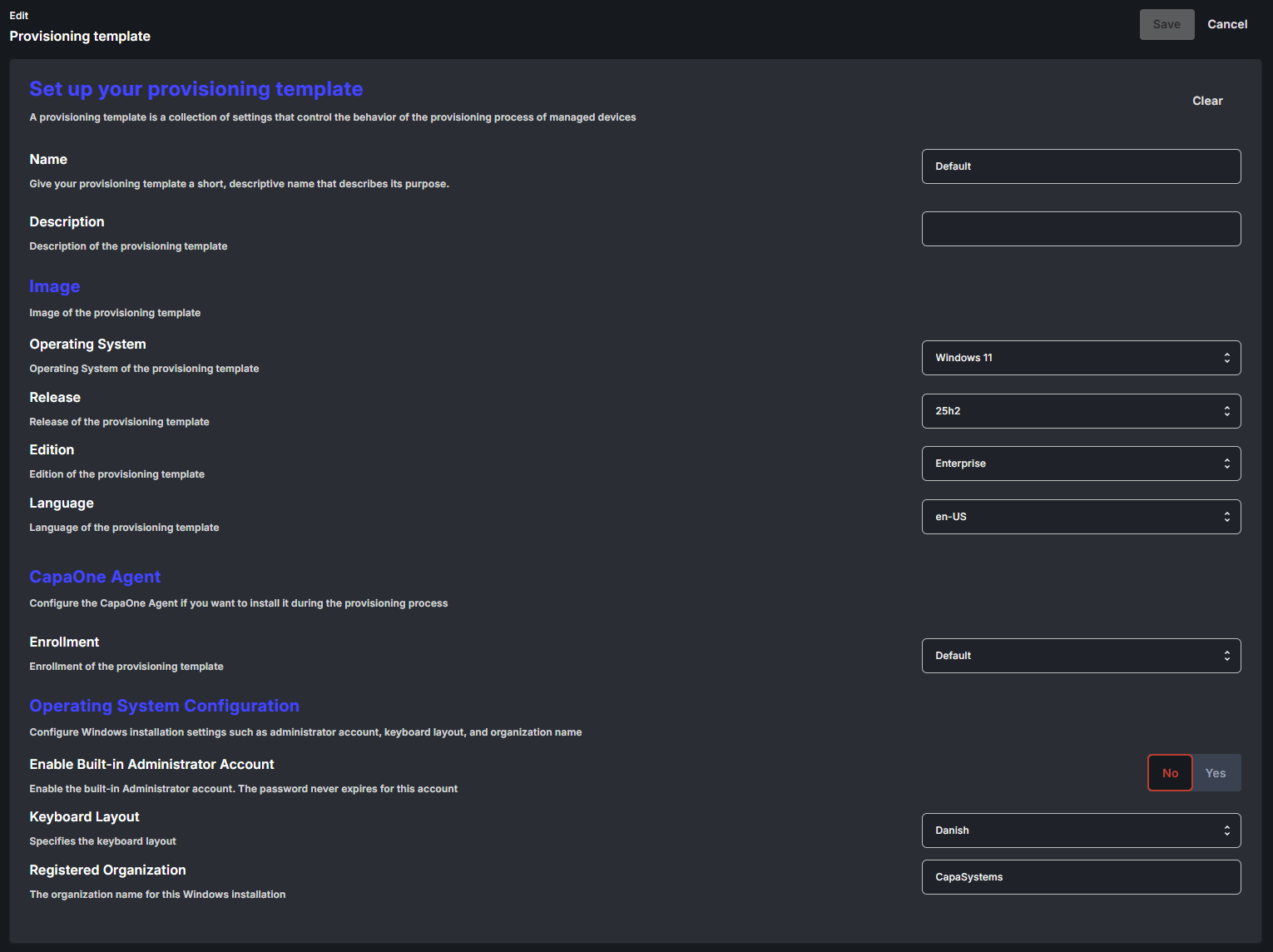

A provisioning template controls the OS installation: which Windows image is installed, the installation settings, and any scripts that run during provisioning. To simplify your initial setup, start with the default template.

See Provisioning Templates for every setting.

2. Set up an enrollment configuration

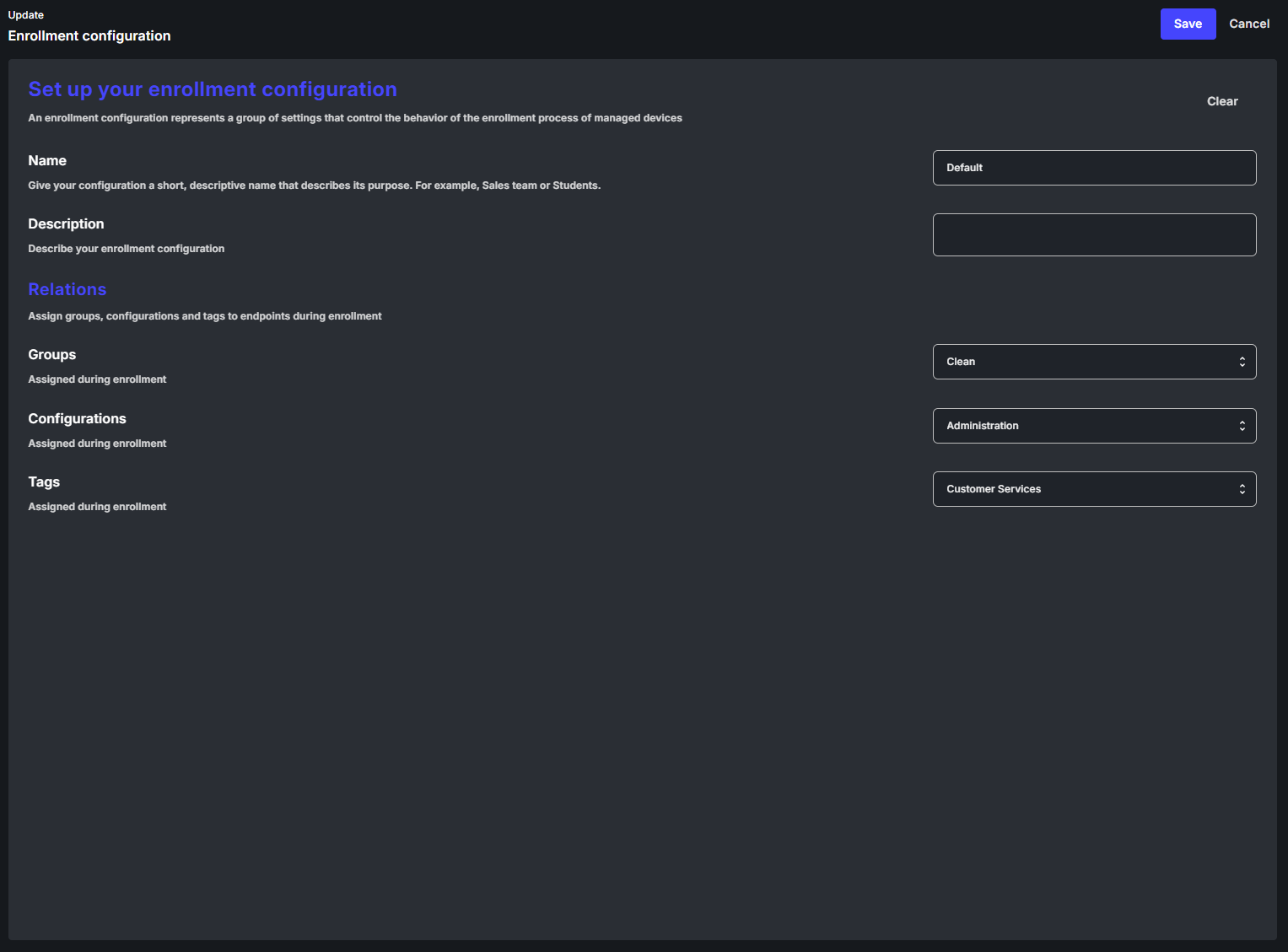

An enrollment configuration dictates how the device is set up in CapaOne after the operating system is installed. Each provisioning template must be linked to an enrollment configuration.

3. Start a provisioning point

The PXE server role runs on an existing managed endpoint:

1. Navigate to Windows → Provisioning → Provisioning Points.
2. Click New and select Start New PXE Server.
3. Select an online device on the same subnet as the devices you want to provision.
4. Click Start PXE.

The PXE server stops automatically after 30 minutes. For details, including the Always On option and stopping a server, see Provisioning Points.

4. Provision a device

1. Power on the device you want to provision and press F12 to open the boot menu.
2. Select network boot. The CapaOne provisioning environment loads.
3. Scan the on-screen QR code with a mobile device.
4. Sign in to CapaOne on the mobile device.
5. Select an organization.
6. Select a provisioning template.

Provisioning continues unattended on the booted device. Windows is installed, and drivers matched to the hardware model are installed during deployment.

5. Follow the installation

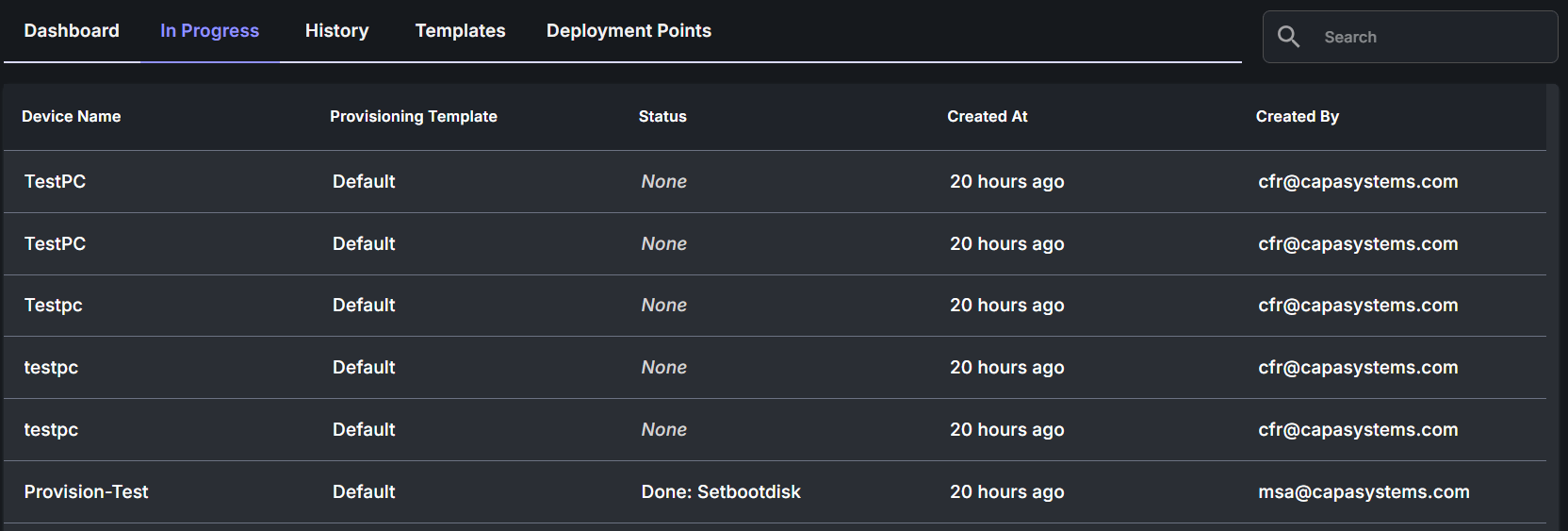

• Windows → Provisioning → In Progress shows devices currently being provisioned. A device appears after it has been assigned an organization and a template.

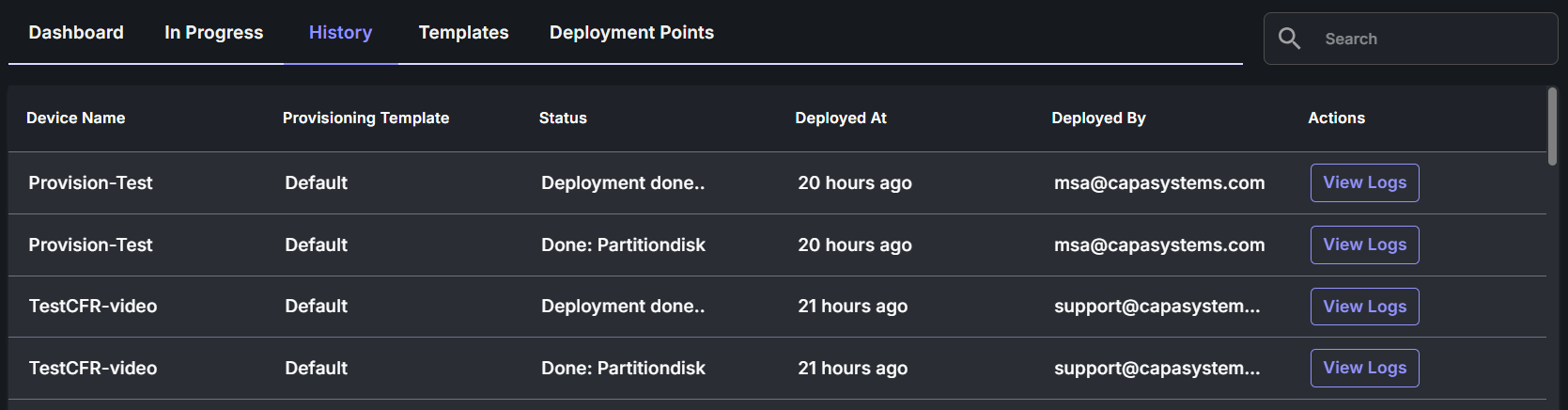

• Windows → Provisioning → History lists completed installations with a detailed log file per device. History logs are deleted automatically after a few months.



When provisioning completes, the device is enrolled in CapaOne according to the enrollment configuration linked to the template.
