Apple Enrollment

Apple devices (iPhone, iPad, Mac) are enrolled through Apple MDM.

An enrollment configuration defines the management mode and what groups, apps, and settings a device receives once enrolled. Go to Apple → Enrollment and click New in the upper-right corner to create one. The same form is used for both enrollment types:

  • Unsupervised (BYOD) — for personally owned devices. The user installs an enrollment profile manually; personal apps and data stay private.
  • Supervised (corporate) — for company-owned devices enrolled through Apple Business Manager (DEP). The device is fully managed from first boot, with no manual steps. You configure this through the DEP Enrollment Profile section of the form.
  1. Go to Apple → Enrollment and click New.
  2. Give it a name and description.
  3. Add groups, configurations, and applications to apply after enrollment.
  4. Click Create.

Set up your enrollment configuration form with Name, Description, Groups, Configurations and Applications fields and the Create and Cancel buttons

Create a supervised (corporate) configuration

Section titled “Create a supervised (corporate) configuration”
  1. Go to Apple → Enrollment and click New.
  2. Give it a name and description.
  3. Add groups, configurations, and applications for supervised enrollment.
  4. Under DEP Enrollment Profile, select an Authentication method. Without Entra ID integration, choose No user authentication.
  5. Under Skip Items, select all setup panes — this improves the first-boot experience.
  6. Click Create.
  7. Click the action menu (⋯) on the configuration and select Set as default DEP.

Enrollment configuration action menu with Edit, Duplicate, View configuration, Rename, Set as default DEP (highlighted) and Delete

Open a configuration with View to access its enrollment materials on the QR Code, Download, DEP Configuration, and Summary tabs.

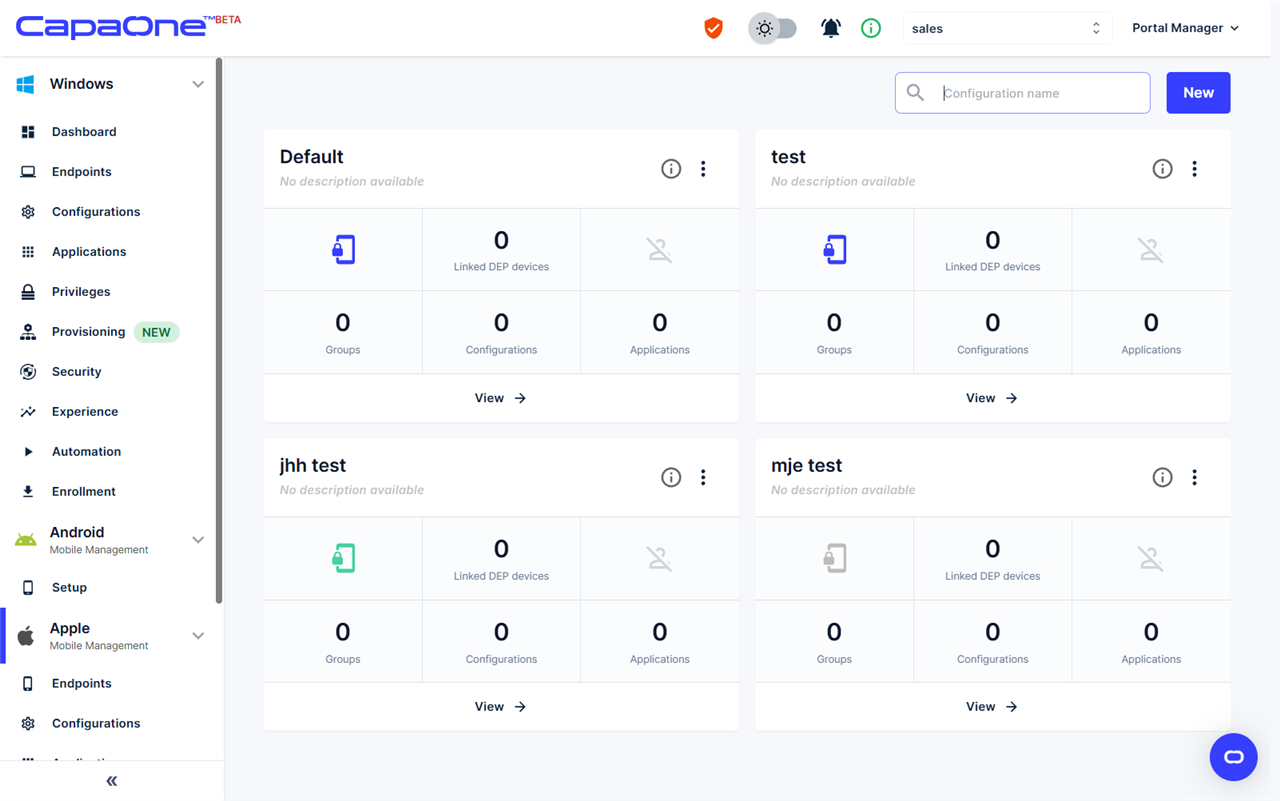

Apple Enrollment page with enrollment configuration cards showing linked DEP devices, groups, configurations and applications, each with a View link

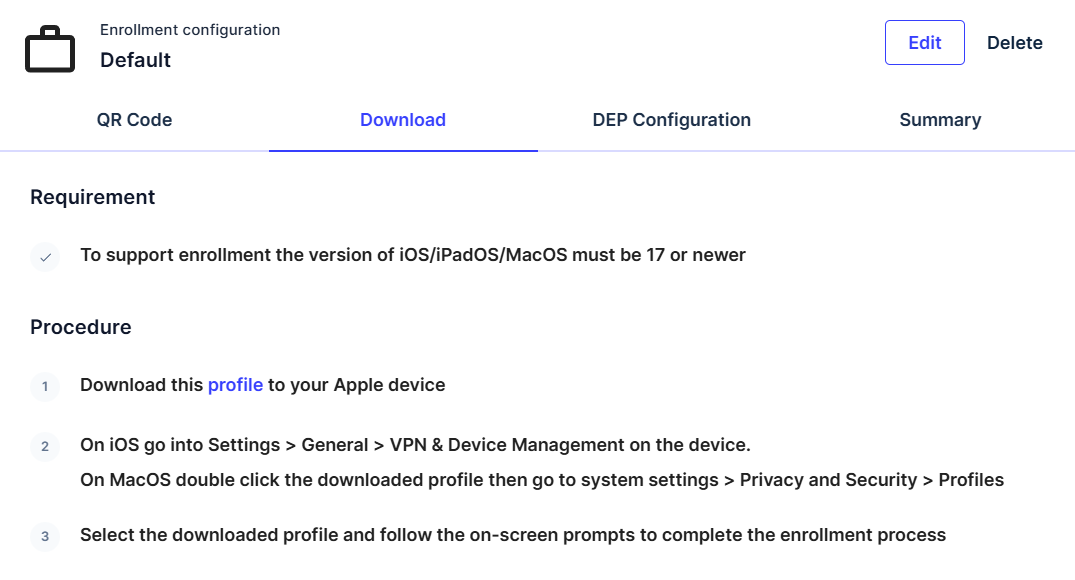

Apple enrollment configuration Default with the Download tab open, showing the iOS 17 requirement and three enrollment steps

  1. Open a browser on the device, or scan the QR code from the configuration using the camera.
  2. Download the enrollment profile and install it:
    • iOS/iPadOS: Settings → General → VPN & Device Management
    • macOS: double-click the profile, then approve it under System Settings → Privacy & Security → Profiles

The device appears under Apple → Endpoints.

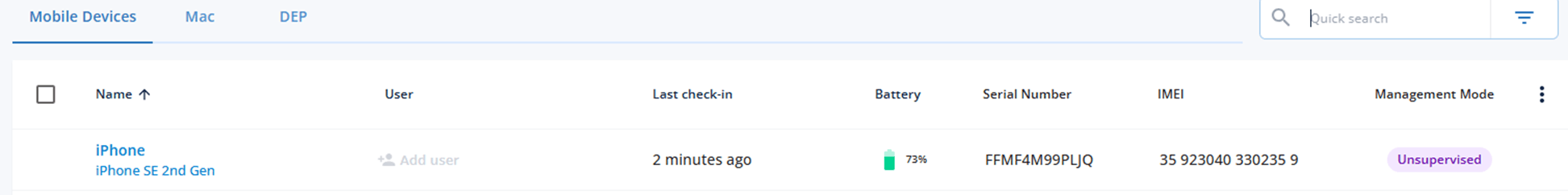

Apple Mobile Devices list with an unsupervised iPhone, its last check-in, battery level and Unsupervised management mode

Requires the Apple DEP Integration.

  1. Assign the device in Apple Business Manager to the CapaOne MDM server.
  2. Reset or unbox the device.
  3. The device auto-enrolls during initial setup. If Entra ID integration is enabled, the user signs in with their credentials.

The device is supervised and managed without manual steps.

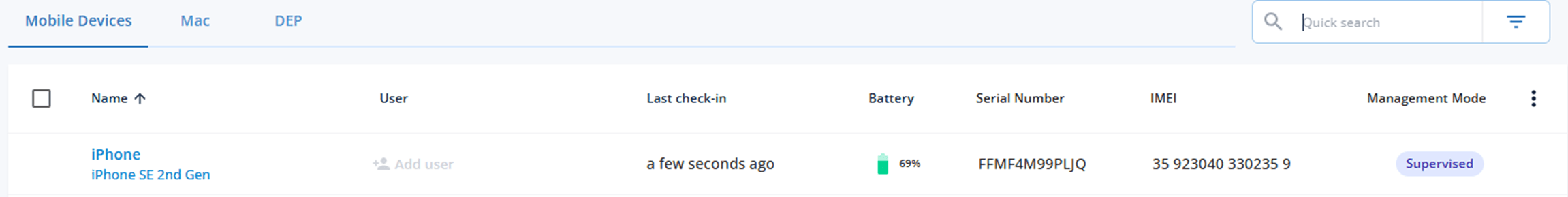

Apple Mobile Devices list with a supervised iPhone and its management mode badge
